셋트앙카

Unit : mm

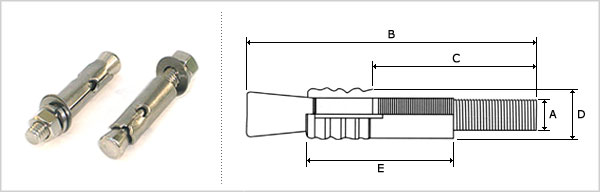

호칭경 (A) 캡길이 (E) 앙카길이 (B) 적합드릴경 (D)
(mm)
드릴깊이
(mm)
1/4" (M6) 30 2" (50mm) 10 33
5/16" (M8) 35 2-1/2" (60mm) 12 38
3/8" (M10) 40 3" (70mm) 14 44
4" (100mm)
5" (125mm)
6" (150mm)
8" (200mm)
10" (250mm)
12" (300mm)
1/2" (M12) 50 4" (100mm) 17 55
5" (125mm)
6" (150mm)
8" (200mm)
10" (250mm)
12" (300mm)
5/8" (M16) 65 5" (125mm) 22 65
6" (150mm)
8" (200mm)
3/4" (M20) 75 6" (150mm) 25 85
8" (200mm)
10" (250mm)
12" (300mm)
