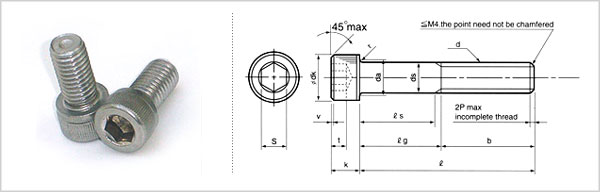

육각렌치볼트

Unit : mm
Nom
Size		 Pitch Thread ds dk k S t r da v
d P b 최대 최소 최대 최소 최대 최소 최대 최소 최소 최소 최대 최대
M1.6
2
2.5		 0.35
0.4
0.45 		15
16
17 		1.6
2
2.5 		1.46
1.86
2.36 		3.14
3.98
4.68 		2.86
3.62
4.32 		1.6
2
2.5 		1.46
1.86
2.36 		1.545
1.545
2.045		 1.520
1.520
2.020 		0.7
1
1.1 		0.1
0.1
0.1 		2
2.6
3.1 		0.16
0.2
0.25
(2.6)
3
4		 0.45
0.5
0.7 		-
18
20 		-
3
4 		-
2.86
3.82		 4.50
5.68
7.22 		4.32
5.32
6.78 		2.6
3
4 		2.46
2.86
3.82 		2.045
2.560
3.080 		2.020
2.520
3.020 		1.1
1.3
2 		0.1
0.1
0.2 		3.2
3.6
4.7 		-
0.3
0.4
5
6
8 		0.8
1
1.25		 22
24
28 		5
6
8 		4.82
5.82
7.78 		8.72
10.22
13.27 		8.28
9.78
12.73 		5
6
8 		4.82
5.70
7.64 		4.095
5.095
6.095 		4.020
5.020
6.020 		2.5
3
4 		0.2
0.25
0.4 		5.7
6.8
9.2 		0.5
0.6
0.8
10
12
(14) 		1.5
1.75
2 		32
36
40 		10
12
14 		9.78
11.73
13.73 		16.27
18.27
21.33 		15.73
17.73
20.67 		10
12
14 		9.64
11.57
13.57 		8.115
10.115
12.142 		8.025
10.025
12.032 		5
6
7 		0.4
0.6
0.6 		11.2
13.7
15.7 		1
1.2
1.4
16
(18)
20 		2
2.5
2.5 		44
48
52 		16
18
20 		15.73
17.73
19.67 		24.33
27.33
30.33 		23.67
26.67
29.67 		16
18
20 		15.57
17.57
19.48 		14.142
14.142
17.230 		14.032
14.032
17.050 		8
9
10 		0.6
0.6
0.8 		17.7
20.2
22.4 		1.6
1.8
2
(22)
24
(27) 		2.5
3
3 		56
60
66 		22
24
27 		21.67
23.67
26.67 		33.39
36.39
40.39 		32.61
35.61
39.61 		22
24
27 		21.48
23.48
26.48 		17.230
19.275
19.275 		17.050
19.065
19.065 		11
12
13.5 		0.8
0.8
1 		24.4
26.4
30.4 		2.2
2.4
2.7
30
(33)
36 		3.5
3.5
4 		72
78
84 		30
33
36 		29.67
32.61
35.61 		45.39
50.39
54.46 		44.61
49.61
53.54		 30
33
36 		29.48
32.38
35.38 		22.275
24.275
27.275		 22.065
24.065
27.065 		15.5
16.5
19 		1
1
1 		33.4
36.4
39.4 		3
3.3
3.6
(39)
42
(45) 		4
4.5
4.5 		90
96
102 		39
42
45 		38.61
41.61
44.61 		58.46
63.46
68.46 		57.54
62.54
67.54 		39
42
45 		38.38
41.38
44.38 		27.275
32.330
32.330 		27.065
32.080
32.080 		20
21
23 		1
1.2
1.2 		42.4
45.6
48.6 		3.9
4.2
4.5
48
(52)
 5
5		 108
116
 48
52 		47.61
51.54 		72.46
78.46 		71.54
77.54 		48
52 		47.38
51.26 		36.330
36.330		 36.080
36.080 		24
26 		1.6
1.6 		52.6
56.6 		4.8
5.2
