Tolerance on ℓ
Unit : mmℓ Division of ℓ |
Tolerance |
---|---|
3 | ±0.2 |
3<ℓ 10 | ±0.3 |
10<ℓ 30 | ±0.4 |
30<ℓ 50 | ±0.5 |
50< | ±0.6 |
Nom Size d |
P | S | t | Screw End | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

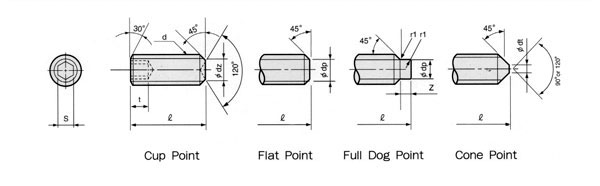

Pitch | min | Cup point | Flat point | Full Dog point | Cone point |
|||||||||||||
dz | dp | dp | r1 | 3)Z Short dog point |
4)Z Long dog point |
dt | ||||||||||||
최대 | 최소 | 1)1 | 2)2 | 최대 | 최소 | 최대 | 최소 | 최대 | 최소 | app rox |
최대 | 최소 | 최대 | 최소 | 최대 | |||
M1.6 | 0.35 | 0.7 | 0.724 | 0.711 | 0.7 | 1.5 | 0.8 | 0.55 | 0.8 | 0.55 | 0.8 | 0.55 | 0.1 | 0.65 | 0.4 | 1.05 | 0.8 | 0.16 |
2 | 0.4 | 0.9 | 0.902 | 0.889 | 0.8 | 1.7 | 1.0 | 0.75 | 1.0 | 0.75 | 1.0 | 0.75 | 0.1 | 0.75 | 0.5 | 1.25 | 1.0 | 0.2 |
2.5 | 0.45 | 1.3 | 1.295 | 1.27 | 1.2 | 2.0 | 1.2 | 0.95 | 1.5 | 1.25 | 1.5 | 1.25 | 0.2 | 0.88 | 0.63 | 1.5 | 1.25 | 0.25 |
(2.6) | 0.45 | 1.3 | 1.295 | 1.27 | 2.0 | (1.3) | (1.6) | 1.5 | 1.4 | 0.2 | (1.5) | (0.25) | ||||||
3 | 0.5 | 1.5 | 1.545 | 1.52 | 1.2 | 2.0 | 1.4 | 1.15 | 2.0 | 1.75 | 2.0 | 1.75 | 0.3 | 1.0 | 0.75 | 1.75 | 1.5 | 0.3 |
4 | 0.7 | 2 | 2.045 | 2.02 | 1.5 | 2.5 | 2.0 | 1.75 | 2.5 | 2.25 | 2.5 | 2.25 | 0.3 | 1.25 | 1.0 | 2.25 | 2.0 | 0.4 |
5 | 0.8 | 2.5 | 2.56 | 2.52 | 2.0 | 3.0 | 2.5 | 2.25 | 3.5 | 3.2 | 3.5 | 3.2 | 0.3 | 1.5 | 1.25 | 2.75 | 2.5 | 0.5 |
6 | 1.0 | 3 | 3.08 | 3.02 | 2.0 | 3.5 | 3.0 | 2.75 | 4.0 | 3.7 | 4.0 | 3.7 | 0.4 | 1.75 | 1.5 | 3.25 | 3.0 | 1.5 |
8 | 1.25 | 4 | 4.095 | 4.02 | 3.0 | 5.0 | 5.0 | 4.7 | 5.5 | 5.2 | 5.5 | 5.2 | 0.4 | 2.25 | 2.0 | 4.3 | 4.0 | 2.0 |
10 | 1.5 | 5 | 5.095 | 5.02 | 4.0 | 6.0 | 6.0 | 5.7 | 7.0 | 6.64 | 7.0 | 6.64 | 0.5 | 2.75 | 2.5 | 5.3 | 5.0 | 2.5 |
12 | 1.75 | 6 | 6.095 | 6.02 | 4.8 | 8.0 | 8.0 | 7.64 | 8.5 | 8.14 | 8.5 | 8.14 | 0.6 | 3.25 | 3.0 | 6.3 | 6.0 | 3.0 |
(14) | 2 | 6 | 6.095 | 6.02 | 5.6 | 9.0 | 9.0 | 8.64 | 10.0 | 9.64 | 10.0 | 9.64 | 0.8 | 3.8 | 3.5 | 7.36 | 7.0 | 4.0 |
16 | 2 | 8 | 8.115 | 8.025 | 6.4 | 10.0 | 10.0 | 9.64 | 12.0 | 11.57 | 12.0 | 11.57 | 0.8 | 4.3 | 4.0 | 8.36 | 8.0 | 4.0 |
(18) | 2.5 | 8 | 10.115 | 10.025 | 7.2 | 11.0 | 12.0 | 11.57 | 13.0 | 12.57 | 13.0 | 12.57 | 0.8 | 4.8 | 4.5 | 9.36 | 9.0 | 5.0 |
20 | 2.5 | 10 | 10.115 | 10.025 | 8.0 | 12.0 | 14.0 | 13.57 | 15.0 | 14.57 | 15.0 | 14.57 | 1.0 | 5.3 | 5.0 | 10.36 | 10.0 | 5.0 |
1) Minimum depth of key engagement for set screws with nominal sizes ℓ above the dotted stepped line.
2) Minimum depth of key engagement for set screws with nominal sizes ℓ below the dotted stepped line.
3) Minimum depth of key engagement and length of dog point for set screws with nominal sizes ℓ above the dashed stepped line.
4) Minimum depth of key engagement and length of dog point for set screws with nominal sizes ℓ below the dashed stepped line.
Nom Size d |
Proof
torque kgf-cm [N.m] |
Recommended
Seating Torque kgf-cm [N.m] |
Key Engagement |
Nom Size d |
Proof
torque kgf-cm [N.m] |
Recommended
Seating Torque kgf-cm [N.m] |
Key Engagement |
|||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
M1.6 | 0.7 | [0.07] | 0.4 | [0.04] | 0.7 | 8 | 240 | [23.5] | 145 | [14.2] | 4 | |
2 | 1.5 | [0.15] | 0.9 | [0.09] | 0.9 | 10 | 460 | [45.1] | 280 | [27.5] | 5 | |
2.5 | 4.5 | [0.44] | 2.7 | [0.26] | 1.3 | 12 | 790 | [77.5] | 480 | [47.1] | 6 | |
(2.6) | 4.5 | [0.44] | 2.7 | [0.26] | 1.3 | (14) | 900 | [88.3] | 540 | [53.0] | 6 | |
3 | 12 | [1.17] | 7 | [0.69] | 1.5 | 16 | 1900 | [186] | 1200 | [118] | 8 | |
4 | 28 | [2.74] | 17 | [1.67] | 2 | (18) | 2150 | [211] | 1300 | [128] | 8 | |
5 | 60 | [5.88] | 36 | [3.53] | 2.5 | 20 | 3700 | [363] | 2200 | [216] | 10 | |
6 | 100 | [9.8] | 60 | [5.9] | 3 |
