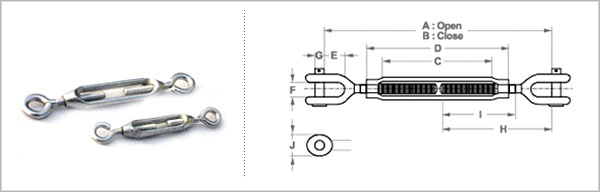

턴버클
Unit : mm| 규
격 (Inch) |
길이 (Length mm) | 치수 (mm) | 사용하중 (Ton) |
무게 (kg) |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | ||||||||||
| EYE | JAW | HOOK | EYE | JAW | HOOK | All Type | All Type | EYE JAW |
HOOK | EYE | JAW | HOOK | |
| 3/8x6 | 443.8 | 410 | - | 291.3 | 257.6 | - | 152.4 | 180.8 | 0.54 | - | 0.3 | 0.4 | - |
| 1/2x6 | 510 | 470 | - | 332.2 | 292.1 | - | 152.4 | 190.5 | 1 | - | 0.5 | 0.7 | - |
| 1/2x9 | 662.4 | 622.3 | - | 408.4 | 368.3 | - | 228.6 | 266.7 | 1 | - | 0.7 | 0.8 | - |
| 1/2x12 | 814.8 | 774.7 | - | 484.6 | 444.5 | - | 304.8 | 342.9 | 1 | - | 1 | 1.1 | - |
| 5/8x6 | 557 | 509.3 | 520.7 | 372.9 | 325.1 | 336.6 | 152.4 | 200.2 | 1.59 | 1.02 | 1.3 | 1.2 | 1.2 |
| 5/8x9 | 709.4 | 661.7 | 673.1 | 449.1 | 401.3 | 412.8 | 228.6 | 276.4 | 1.59 | 1.02 | 1.5 | 1.6 | 1.5 |
| 5/8x12 | 861.8 | 814.1 | 825.5 | 525.3 | 477.5 | 489 | 304.8 | 352.6 | 1.59 | 1.02 | 1.6 | 1.8 | 1.6 |
| 3/4x6 | 606.5 | 546.1 | 568.5 | 416.1 | 355.6 | 378 | 152.4 | 209.6 | 2.36 | 1.36 | 1.7 | 1.9 | 1.8 |
| 3/4x9 | 759 | 698.5 | 720.9 | 492.3 | 431.8 | 454.2 | 228.6 | 285.8 | 2.36 | 1.36 | 2.1 | 2.5 | 2.4 |
| 3/4x12 | 911.4 | 850.9 | 873.3 | 568.5 | 508 | 530.4 | 304.8 | 362 | 2.36 | 1.36 | 2.5 | 2.9 | 2.5 |
| 3/4x18 | 1216.1 | 1155.7 | 1178.1 | 720.9 | 660.4 | 682.8 | 457.2 | 514.4 | 2.36 | 1.36 | 3.3 | 3.7 | 3.7 |
| 7/8x12 | 941.6 | 891.8 | 914.4 | 592.3 | 542.5 | 565.2 | 304.8 | 371.3 | 3.27 | 1.82 | 3.3 | 3.7 | 3.7 |
| 7/8x18 | 1246.4 | 1196.6 | 1219.2 | 744.7 | 694.9 | 717.6 | 457.2 | 523.7 | 3.27 | 1.82 | 4.5 | 4.9 | 4.5 |
| 1x6 | 710.4 | 627.9 | 651 | 507.2 | 424.7 | 447.8 | 152.4 | 228.6 | 4.54 | 2.27 | 4.1 | 4.6 | 4.2 |
| 1x12 | 1015.2 | 932.7 | 955.8 | 659.6 | 577.1 | 600.2 | 304.8 | 381 | 4.54 | 2.27 | 5.2 | 5.7 | 5.4 |
| 1x18 | 1320 | 1237.5 | 1280.6 | 812 | 729.5 | 752.6 | 457.2 | 533.4 | 4.54 | 2.27 | 6.4 | 6.9 | 6.4 |
| 1x24 | 1624.8 | 1542.3 | 1565.4 | 964.4 | 881.9 | 905 | 609.6 | 685.8 | 4.54 | 2.27 | 7.8 | 8.2 | 7.8 |
| 1 1/4x12 | 1087.4 | 1011.9 | 1027.2 | 719.1 | 643.6 | 658.9 | 304.6 | 384 | 6.9 | 2.95 | 8.6 | 9.3 | 9.3 |
| 1 1/4x18 | 1392.2 | 1316.7 | 1332 | 817.5 | 796 | 811.3 | 457.2 | 536.4 | 6.9 | 2.95 | 10.4 | 11.2 | 10.4 |
| 1 1/4x24 | 1697 | 1621.5 | 1637.8 | 1023.9 | 948.4 | 963.7 | 609.6 | 688.8 | 6.9 | 2.95 | 12.3 | 12.8 | 12.3 |
| 1 1/2x12 | 1155.7 | 1054.1 | - | 774.7 | 673.1 | - | 304.8 | 400.1 | 9.72 | - | 12.5 | 13.9 | - |
| 1 1/2x18 | 1460.5 | 1358.9 | - | 927.1 | 825.5 | - | 457.2 | 552.5 | 9.72 | - | 14.1 | 16.7 | - |
| 1 1/2x24 | 1765.3 | 1663.7 | - | 1079.5 | 977.9 | - | 609.6 | 704.9 | 9.72 | - | 17 | 18.5 | - |
| 1 3/4x18 | 1457.5 | 1355.9 | - | 1000.3 | 898.7 | - | 457.2 | 568.5 | 12.71 | - | 23.8 | 24.5 | - |
| 1 3/4x24 | 1762.2 | 1660.7 | - | 1152.7 | 1051.1 | - | 609.6 | 720.9 | 12.71 | - | 26.3 | 28.8 | - |
| 2x24 | 1922.5 | 1766.3 | - | 1312.9 | 1156.7 | - | 609.6 | 736.6 | 16.8 | - | 38.7 | 42.8 | - |
| 2 1/2x24 | 1997 | 1853.7 | - | 1387.3 | 1244.1 | - | 609.6 | 788.9 | 27.24 | - | 65.5 | 74.9 | - |
| 2 3/4x24 | 2057.4 | 1898.7 | - | 1447.8 | 1289.1 | - | 609.6 | 788.9 | 34.05 | - | 88.1 | 89.9 | - |
