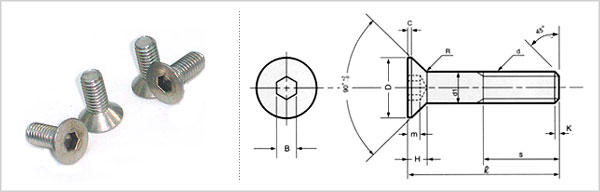

육각접시머리 볼트

Unit : mm
Nom
Size
d		 d1 D H B m R K C S
최대 최소 최대 최소 최대 최대 최소 최대 최소 approx 최대 approx min Thread
Length
M3 3.0 2.86 6.0 5.7 1.7 2.046 2.006 1.2 0.95 0.1 0.8 0.25 12
4 4.0 3.82 8.0 7.6 2.3 2.566 2.506 1.8 1.55 0.2 1.0 0.3 14
5 5.0 4.82 10.0 9.6 2.8 3.066 3.006 2.3 2.05 0.2 1.2 0.3 16
6 6.0 5.82 12.0 11.6 3.3 4.085 4.010 2.5 2.25 0.3 1.5 0.4 18
8 8.0 7.78 16.0 15.6 4.4 5.085 5.010 3.5 3.2 0.5 1.8 0.4 22
10 10.0 9.78 20.0 19.5 5.5 6.085 6.010 4.4 4.1 0.5 2.2 0.5 26
12 12.0 11.73 24.0 23.5 6.5 8.103 8.013 4.6 4.3 1 2.5 0.5 30
16 16.0 15.73 30.0 29.5 7.5 10.103 10.013 5.3 5.0 1 3.0 0.5 38
Unit : mm
Nom
Size
d		 ℓ Tensile
(kgf)		 Load
[N]
Fully threaded Half threaded
M3 8 10 12 14 15 16 18 20 25 30 35 40 530 [5,200]
4 8 10 12 14 15 16 18 20 25 30 35 40 930 [9,100]
5 10 12 14 15 16 18 20 25 30 35 40 45 50 1,500 [14,710]
6 12 14 15 16 18 20 25 30 35 40 45 50 60 2,130 [20,890]
8 14 15 16 18 20 25 30 35 40 45 50 60 70 80 3,880 [38,050]
10 16 18 20 25 30 35 40 45 50 60 70 80 90 100 6,150 [60,310]
12 20 25 30 35 40 45 50 60 70 80 90 100 8,900 [87,280]
16 30 35 40 45 50 60 70 80 90 100 16,600 [162,800]

Tolerance on s

Unit : mm
Division of
S 		Tolerance
18 +2
0
18 ~ 30 +3
0
30 +4
0

Tolerance on ℓ

Unit : mm
Division of
ℓ 		M3 ~ M10 M12 ~ M16
50 ±0.4 ±0.5
50 ~ 120 ±0.5 ±0.6
120 ~ 250 ±0.6 ±0.7
